Features:
- Ideal for traditional applications in dry construction and refurbishing, e.g. for making saw cuts through plasterboard, concrete fibre boards, wood materials, such as formwork panels and chipboard or OSB boards
- Brushless motor with greater efficiency and a longer service life
18 V EC motor with overload protection and temperature monitoring
Items Included:
| 1× Standard circular saw blade with alternating teeth (456012) |
| 1× Carrying case L-BOXX® (414107) |
| 1× Case insert (459380) |
| 1× Dust bag |
Technical Data:
| Cutting depth: | 0-62 mm |
| Cutting depth, mitre cut (45°): | 0-38 mm |
| Saw blade diameter: | 165 mm |
| Saw blade hole: | 20 mm |
| Pivoting range: | 0-50 ° |
| Angle preset: | 0 / 22,5 / 45 / 50 ° |
| Dimensions WxLxH: | 380 x 150 x 200 mm |
| Weight without battery pack: | 2.4 kg |
Downloads:
Flyer
Detailed Description:
- Electronic management system (EMS) protects the machine, extends the service life, and increases efficiency.
- Angle scale from 0 ° to 50 °. With preset angles of 22.5°/ 45°, and 50°. Easy to read, precision adjustment via non-slip clamping elements
Dual clamped swivel element prevents the saw blade from jamming when making mitre cuts and therefore the risk of recoil - Swivel range from 0° to 50° for undercuts as well as scoring function for perfect visible edges

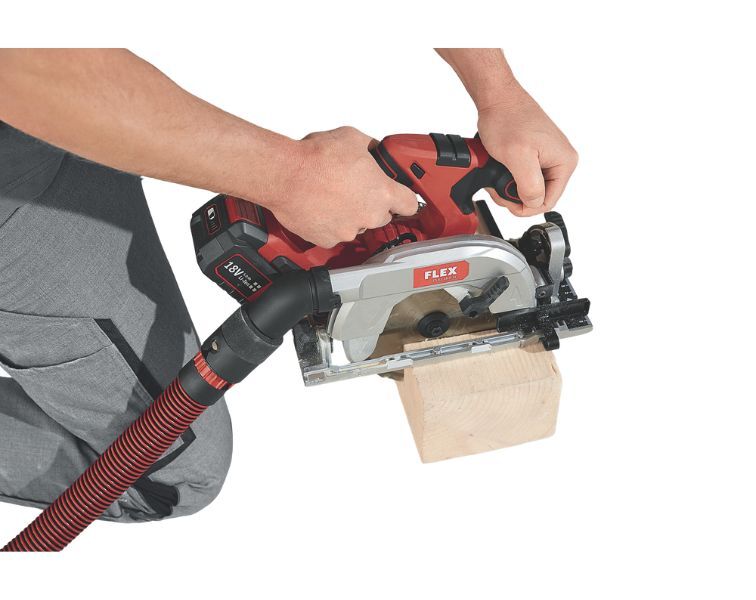

Intuitive clamp lever for cutting depth adjustment, cutting depth is easy to read off - Connector for external dust extraction Ø 27 mm or step adapter
- Woodshaving collection bag for low-dust operation, simple to empty, tool-free attachment by means of bayonet connection
- In accordance with the latest regulations without splitting wedge for plunge cuts and without time-consuming removal of splitting wedge
- Spindle lock: for quick replacement of blades
LED battery capacity display - FLEX battery system: suitable for all FLEX 18 V battery packs. Delivery does not include battery and charger
