Features:
- Large, rugged single-speed gear unit with optimum gear ratio for high torque
- Full-wave electronic control: with soft start, temperature monitoring, overload protection and accelerator switch – for a controlled run-up to the optimum mixing speed. Sustained power in all speed ranges
- On/off switch with lock and protection at power interruption. Ideal for stationary operation in a mixing station
Technical Data:
| Voltage: | 230 V |
| Frequency: | 50/60 Hz |
| Max. Mixing Basket Diameter: | 120 mm |
| Tools Holder, Mixer: | M14 |
| No-load speed, 1st gear: | 0 – 780 rpm |
| Clamping collar diameter: | 53 mm |
| Cable Length: | 4.0 mm |
| Dimensions (WxLxH): | 405 x 215 x 340 mm |
| Weight: | 4.5 Kg |
Downloads:
Flyer
Detailed Description:
- The flexible rubber sleeve over the on/off switch prevents the ingress of dirt. No malfunctions caused by jammed switches
- Ergonomic handles on the drive unit: low weight, fatigue-free arm posture and upright body posture allow comfortable, ergonomic operation
- Four corner guards with rubber buffer provide secure storage during transportation and offer protection against shocks and impacts at the building site
- Protective cap above the motor housing guides the cooling air flow and prevents the ingress of splashing water
- For mixed applications up to 40 kg
- Proven standard mixer is ideal for users operating mainly in the low speed range

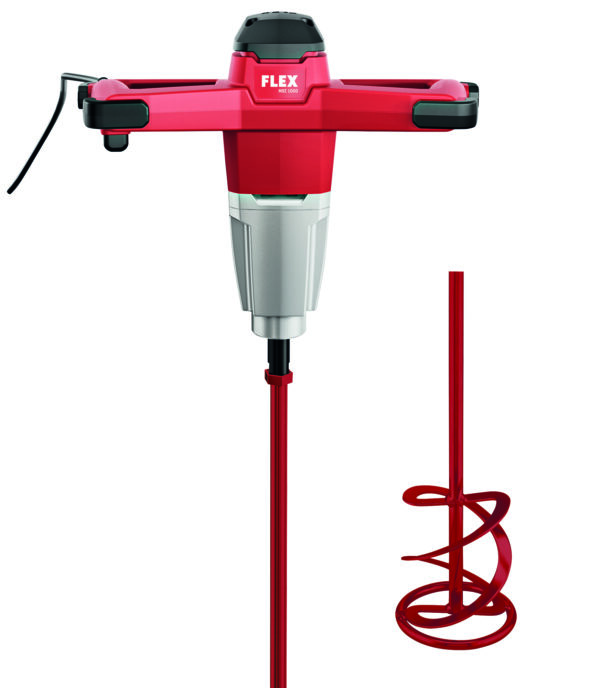

- With mixing paddle WR2 for mixture: pasty to tough. Tile adhesive, grout, filler compound, adhesive, finished plaster, adhesive mortar
