Features:
- Power: 800W motor with 2.7 J impact energy.
- Functionality: 4 modes: Drilling, Hammer Drilling, Chiselling, Chisel Adjustment.
- Chucks: Quick-change system (SDS-plus hammer chuck and 13mm keyless drill chuck).
- Design: Pistol-shaped, lightweight 2.8 kg, with clockwise/anti-clockwise rotation.
- Capacity: Max 28 mm in concrete
Technical Data:
| No-load speed, 1st gear: | 0 – 1300 rpm |
| No-load blows, Setting 2: | 0-4000 bpm |
| Chuck clamping width: | 1.5-13 mm |
| Max. drilling diameter in wood: | 30 mm |
| Max. drilling diameter in steel: | 13 mm |
| Dimensions WxLxH: | 390x 83 x 95 m |
| Weight without battery pack: | 2.8 kg |
Downloads:
Flyer
Detailed Description:
- High Performance: Equipped with an 800W motor that delivers a strong Joule of single impact energy (EPTA). This provides a high material removal rate for its 2.8kg} weight class.
- Versatile Functionality: Features a 4-function switch allowing selection between Drilling, Hammer Drilling, Chiselling, and Chisel Adjustment (to lock the chisel in a desired orientation).

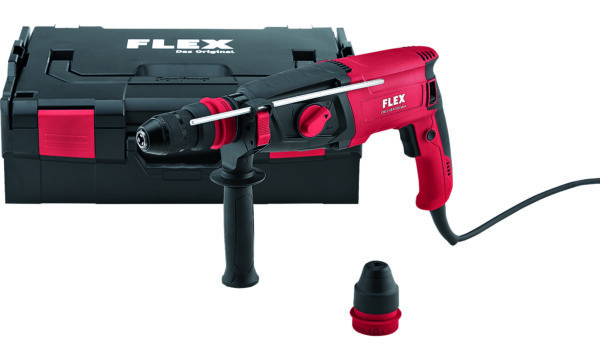

- Quick Tool Change: Includes a quick-change system that allows you to swap rapidly between the primary SDS-plus chuck (for hammer drilling) and a 13 mm keyless chuck (for conventional drilling in wood or steel).
- Reversible Rotation: The clockwise/anti-clockwise rotation function is achieved by a carbon brush reverser, ensuring almost identical torque in both directions—useful for extracting jammed drill bits.
- Max Capacity: Capable of drilling up to 28 mm in concrete, making it ideal for common dowel and anchor fixings.
