Features:
- 3-speed transmission with oil pump
- Mechanical and electronic overload cut-out
- Full metal housing
- Built-in performance and service indicator
- Leveling aid
- PRCD protection switch
Items Included:

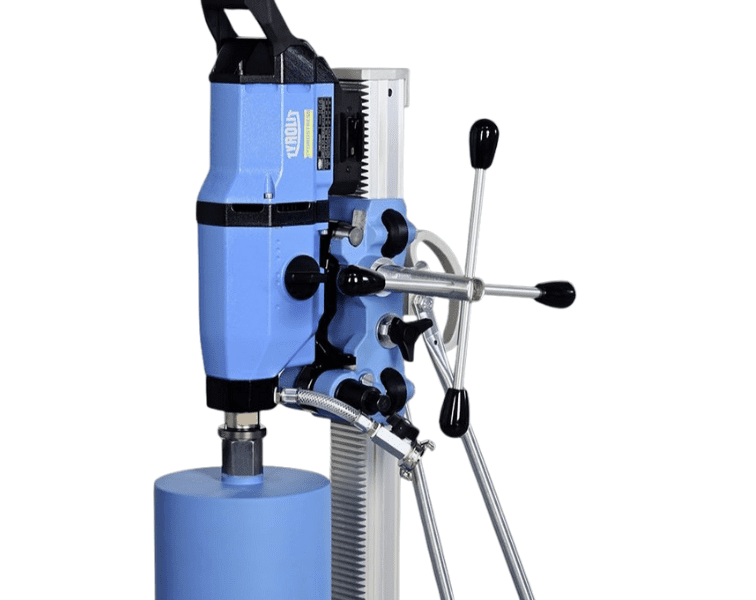

- Drill rig DRA250
- Fastening bolt assembly for vacuum base
Downloads
Core Bit Spare parts
Technical Data:
| Category: | Drilling & Coring machines |
| Sub Category: | Machines / Construction Tools |
| Device Name: | Drill Motor DME32MW (110V version) |
| Nominal current: | 30 A |
| Nominal power: | 3.2kw |
| Load speed: | $230 / 460 / 720 rpm(3-speed) |
| Motor cooling: | Air-cooled |
| Application: | Wet core drilling (rig-based) |
| Tool attachment: | $1 \frac{1}{4}$” UNC |
| Operations: | Rig-based |
| Drill rig attachment: | (quick clamping system) or Universal plate |
| Length: | 540 mm |
| Width: | 156 mm |
| Height: | 176 mm |
| Weight: | 12.8 kg |
