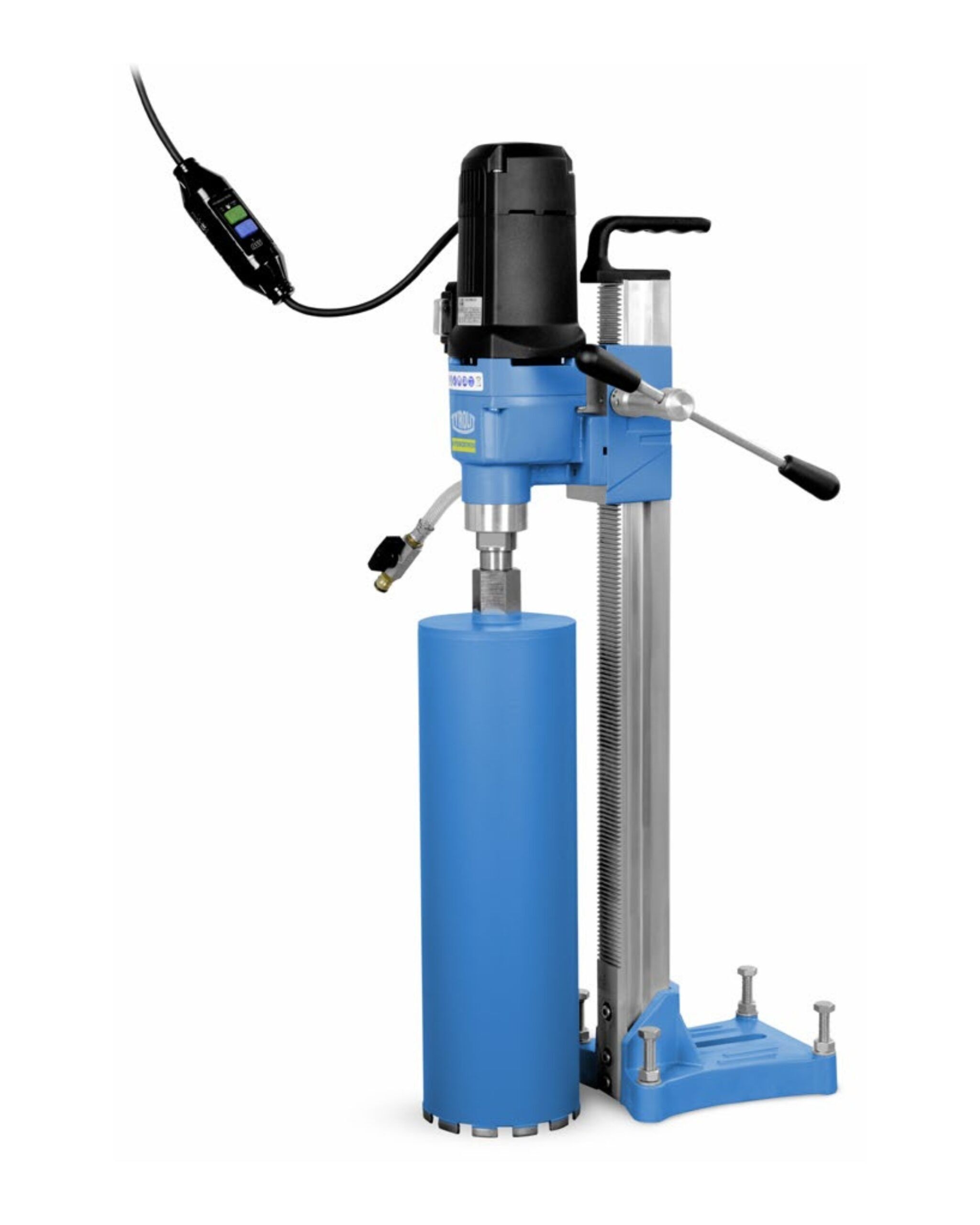

Tyrolit DRS162S / 1/ 162mm/ Ancho/ 2.5kW/ 230V/ SchukoU Core drilling up to Ø 162 mm

Model no: DRS162S/1

  • Brand: Tyrolit
  • Model: DRS162S/1
  • Type No: 10990700
  • Type: Core drilling system
  • Voltage / Frequency: 230 V / 50 Hz
  • Rated Input Power: 2.5k w
  • Bore hole diameter: 40–162 mm
  • Warranty: 1 Year
Categories: , Brand:

Features:

  • Aluminium dowel foot
  • Feed using hand crank
  • Adjustable feet (M12)
  • 1 handle
  • Motor fixed integrated

Items Included:

  • Fixing Bolts

Downloads

Core Bit Spare parts


W3Schools



Technical Data:

Category: Drilling & Coring machines
Sub Category: Core drilling system
Device Name: DRS162S/1/162mm/Ancho/2.5kW/230V/SchukoU
Core drilling up to Ø 162 m
Nominal current: 11.5 A
Nominal power: 2.5 kW
Load speed: 450 rpm
Motor cooling: Air
Application: Wet
Tool attachment: 1 ¼”
Operations: Drill rig operation
Drill rig attachment: Aluminium Dowel Foot
Length: 365 mm
Width: 185 mm
Height: 855 mm
Weight: 15.5 kg
