Features:
• Versatile Application: Ideal for cutting grooves and ducts in concrete, sand-lime brick, and masonry
• Adjustable Cutting Width: Slot width adjustable in 1 mm steps from 7 mm to 46 mm
• Variable Cutting Depth: Continuously adjustable cutting depth up to 45 mm for precise control
• Efficient Operation: Supplied 3-blade spacer set enables faster breakout through a center slot
• Optional Accessory: Compatible with a 4-blade arbor for enhanced cutting flexibility
• Ergonomic Design: Planer-style handle ensures comfortable handling and accurate cut guidance
• Cleaner Work Environment: Closed folding hood and integrated vacuum connection minimize dust and debris
Items Included:
- Wall Chaser HCE150
- 3-Blade Spacer Set
- Installation Tool
- Additional Rings
- Operating Instructions
- Metal Case
Technical Data:
| Category: | Cutting Machine |
| Sub Category: | Wall Chaser / Slot Cutter |

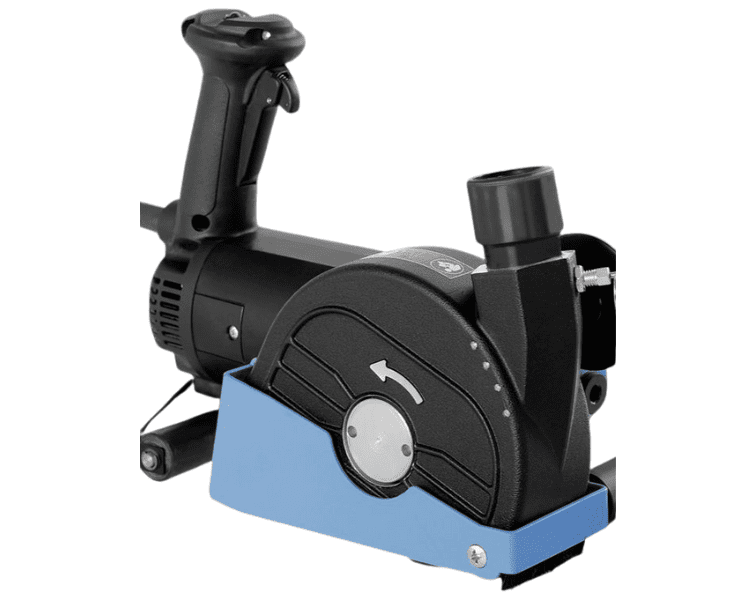

| Device Name: | Wall Chaser HCE 150 |
| Type No.: | 11003047 |
| Motor Power: | 2.3k W |
| Max. Slot Depth: | 45 mm |
| Max. Slot Width: | 46 mm |
| Blade Diameter: | 150 mm |
| Weight: | 6.1 kg |
