Features:
- 3-speed transmission
- Variable speed setting with soft start
- Electronic and mechanical overload cut-outs
- PRCD protection switch
- Dry drilling capability (with M16 adapter)
Items Included:
- Drill Stand: DRU160***
- Fastening bolt: assembly for vacuum base
Downloads
Core Bit Spare parts
Technical Data:
| Category: | Drilling & Coring machines |
| Sub Category: | Machines / Construction Tools |

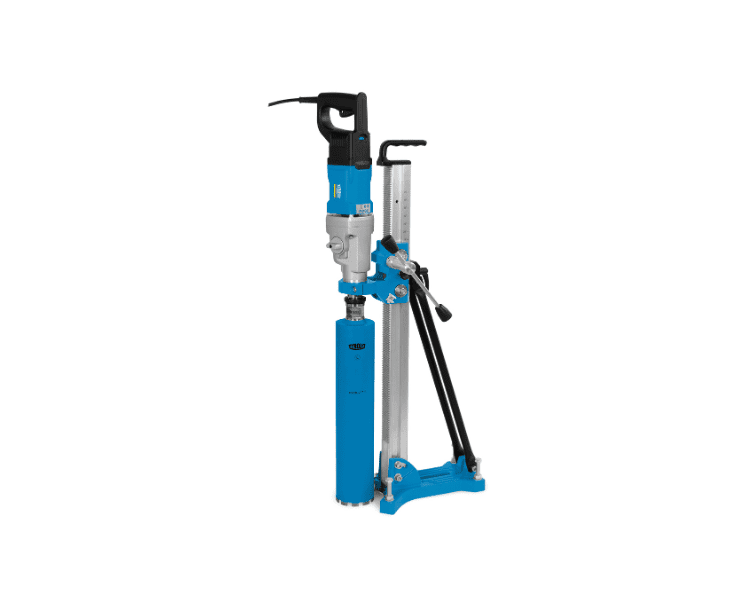

| Device Name: | Tyrolit Drill Motor DME22SU |
| Nominal current: | 9.5 A |
| Nominal power: | 9.5 A |
| Load speed: | 400 / 750 / 1550 rpm(3-speed) |
| Motor cooling: | Air-cooled |
| Application: | Wet and dry core drilling in masonry, concrete, and reinforced concrete |
| Tool attachment: | Dual Thread |
| Operations: | Hand-held / Rig-based |
| Drill rig attachment: | Clamping collarØ 60 mm |
| Length: | 552 mm |
| Width: | 110 mm |
| Height: | 150 mm |
| Weight: | 6.0 kg |
